Product Details:
|
| Name: | Automatic Screw Arrangement Machine | Size: | 180mm*125mm*150mm |
|---|---|---|---|
| Line Protection: | Overload Stall Or Reverse To Protect The Machine | Screw Capacity: | 80cc |
| Screw Material: | Ferrous Metals | Cumulative Points: | 9999*9999 Pieces |
| High Light: | Adjustable Automatic Screw Presenter,Automatic Screw Presenter 500MA,5.0mm Automatic Screw Machine |
||
Screw Presenter M1.0-5.0 Adjustable Automatic Screw Feeder Manufacturer

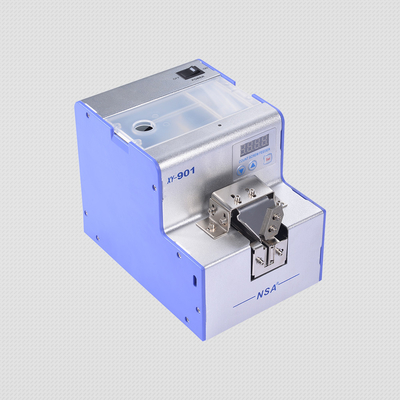

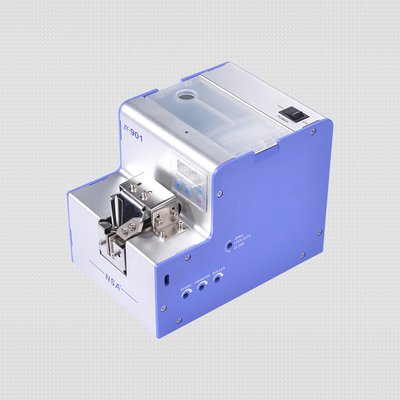

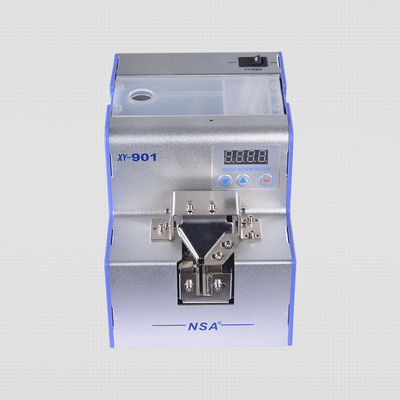

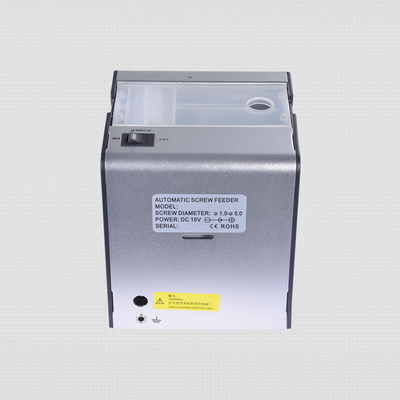

XY-901 screw automatic feeder features:
1.Special screws can be used
Can use ordinary screws, flat head screws, with gasket screws, self-tapping screws and other screws, do not understand can consult the seller.
2. Track size can be adjusted
The removable adjustment is accurate, the track size adjustment is simple and easy to understand, and the screw size can be operated freely regardless of the centimeter or the inch size.
The vibration distance is small and the vibration is strong. After the screw reaches the front end point, it will not move back and forth obviously and affect the speed and production speed of the screw.
3. Reduce inventory and reduce costs
A machine can adjust the screws used in various specifications, and the user can reduce the purchase cost of the equipment.
Y-901 screw automatic feeder parameters:
1, product model: xy-901
2. Net weight: 2.92kg
3, the length of the screw: less than or equal to 20MM
4, thread shape: ordinary screws, flat head screws, with gasket screws, self-tapping screws and other screws.
| Mode | XY-901 |
| DC Power | AC220V DC12V 500MA AC adapter |
| Screw thread | M screw & self tapping screw |
| Screw length | less than 20mm |
| Continuous pickup speed | 1.5s/pcs |
| Total accumulative amount | 9999*9999pcs |
| Screw specification | M1.0-M5.0 |
| Measure | 123W*145H*181D |
| Screw orbit | 1.0-5.0mm |
1.OEM Manufacturing is welcome.
2. Sample order is accepted.
3. We will reply you for your inquiry within 24 hours.
4. After shipping, we will track the products for you once every two days, until you get the products.
5. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solution for you.
6. The warranty of our products is 1 year.
FAQ
Q1. What is your payment terms?
Western Union, T/T and Paypal are 100% advanced before sending the product. If you need additional terms, please discuss with our sales staff.
Q2. How is your delivery time?
In general, the number of 100 sets or less is only 2-10 working days. The exact delivery time depends on the model of the material, the stock of the material and the quantity of the order.
Q3. What is your sample policy?
We do not have a minimum order quantity for sample orders. And the sample order can enjoy the fastest lead time only one day after receiving the payment.
Q4. Do you test all the goods before delivery?
Yes, we performed 100% testing before delivery and all products were tested for at least 48 hours to ensure good quality.
